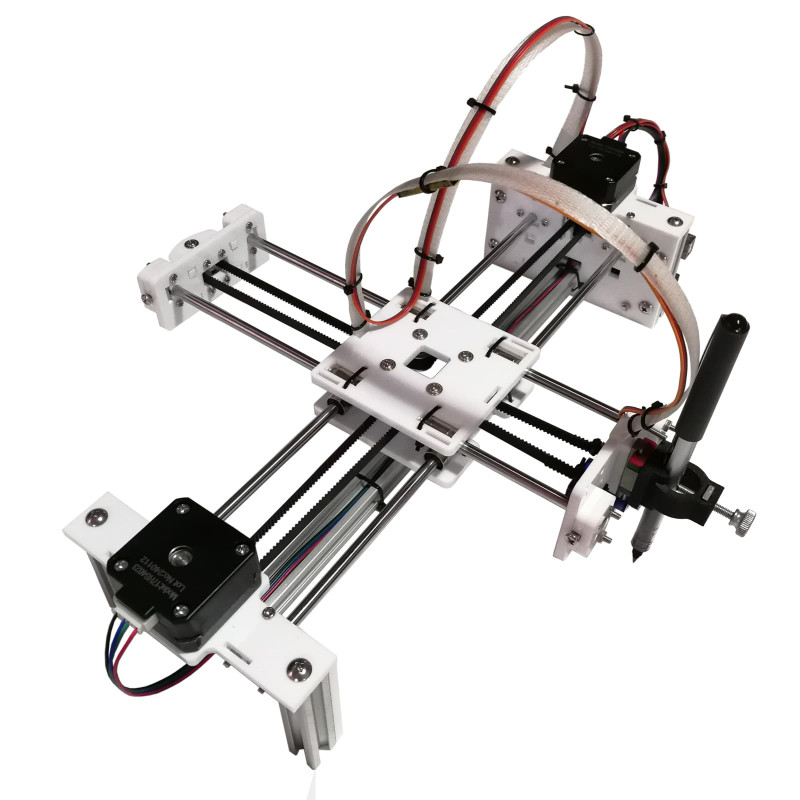

Doesbot AX5 Pen Plotter Writing Robot Open Source DIY Kit Corexy A5 Size Learn Programming

1. Product Overview

The AX5 writing machine frame is made of 1515 industrial aluminum profiles, paired with a 5MM acrylic panel. The XY axis is guided by a 6mm diameter optical axis with linear bearing movement. The up and down pen lifting mechanism adopts a micro linear guide system. The XY axis stroke of this kit is 210 × 150mm is the same size as A5 paper, equipped with a standard 42 stepper motor and brand TS90 servo, with a recommended running speed of 3000mm per minute. This kit adopts the open-source Arduino system, which, in conjunction with relevant software, can be used for writing, drawing, etc. on paper materials. This kit is packaged in loose parts, with a packaging weight of around 2KG. Customers need to have some hands-on skills in assembly and debugging, and provide assembly instructions and source code. This kit has a USB interface and can work when connected to a computer. It is recommended to use the WIN7 system.

2. Package Introduction

The brand new 42 stepper motor+brand new linear guide rail+Arduino uno professional integrated control board, machine color (transparent acrylic+silver aluminum profile), 12V 2A power supply, Provide one A4988 driver and one TS90 servo as a gift, as well as one straight liquid ball pen.

AliExpress link: https://www.aliexpress.com/item/1005005924700769.html
